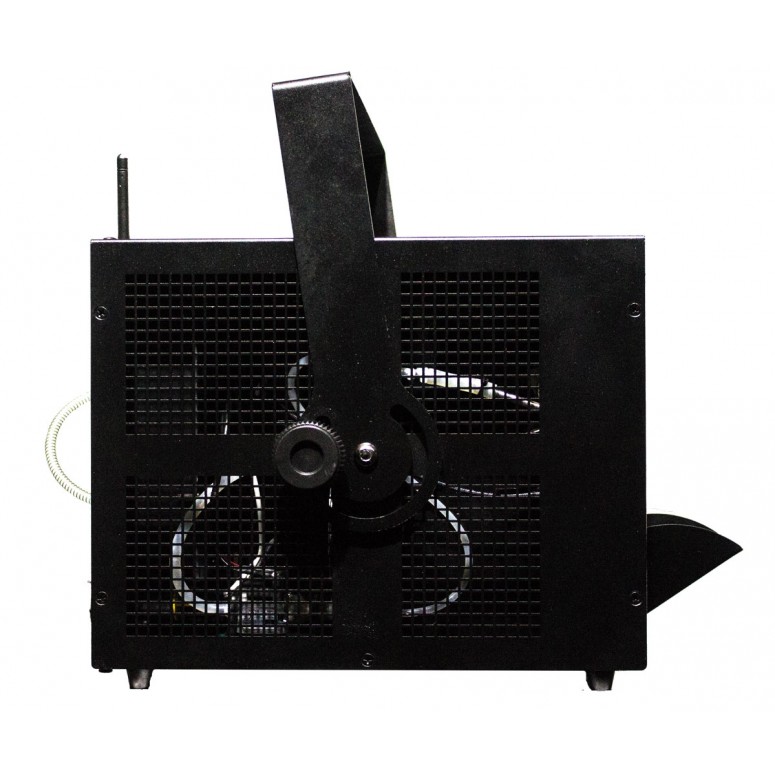

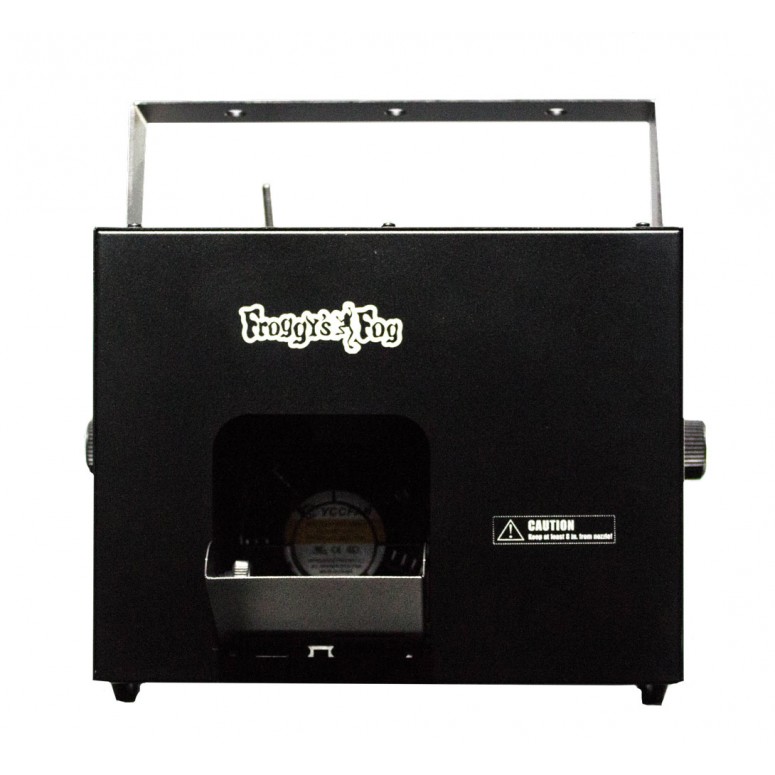

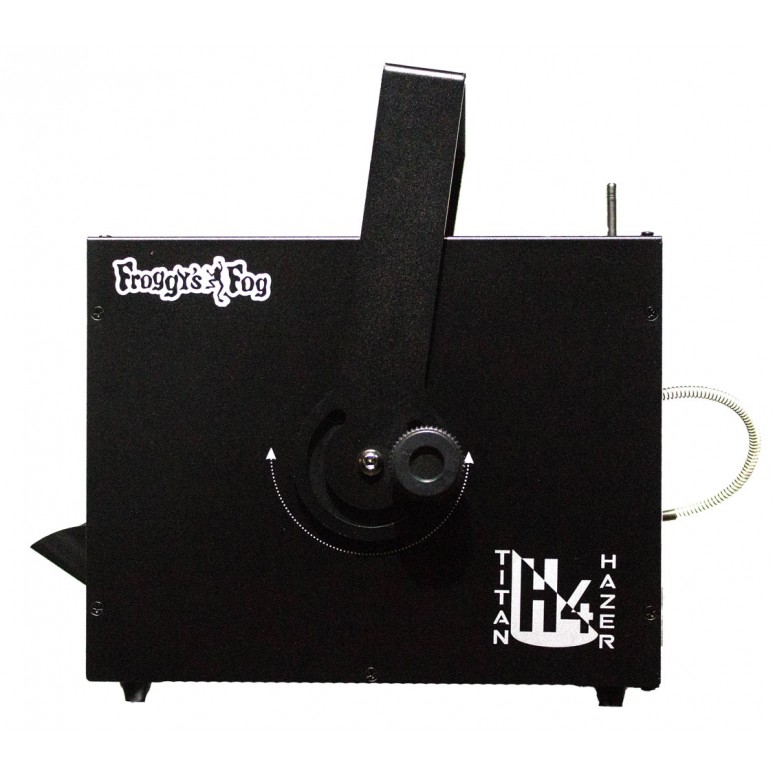

Froggy’s Fog® – Titan® Hazer H4 – 1200 Watt Hazer

Froggy’s Fog® – Titan® Hazer H4 – 1200 Watt Hazer

SKU: FHM-TITAN-H4

The most powerful and efficient Haze machine in its price range, the Titan® Hazer H4 features higher quality parts, more ways to control, smarter operation and reliability.

  • Continuous Output: Cover up to 6,000 Cubic Feet Per Minute.
  • Advanced Fluid Sensing Technology: Built in fluid sensing technology that can detect if there is low or no fluid in your machine and automatically turn it off.
  • Super Quiet: The H4 offers super quiet haze production. With minimal noise even up close, no one will know when your hazer is running.
  • More Control: Advanced digital controls including timer functionality in a simple package.
  • Lightweight: Easy to move and mount.

Anti-slip fluid tank

Our textured fluid tank gives you a better grip when refilling your machine. This is especially handy when it is mounted up high and you need to have 3 points of contact on the ladder.

Aluminum alloy cap & Anti-leaking fluid system

Say no to plastic caps! The H4 has a sturdy aluminum fluid tank cap with quick-connect fittings. The groved cap makes it easier to turn, especially with wet hands. No more busted caps that are hard to reseal.

Lightweight

At less just 26lbs the H4 is easy to carry and mount.

More Control Options

The H4’s built-in LCD control panel, wireless control and 3-pin / 5-pin DMX control give you more ways to turn your machine on and off. You can even set a timer for automatic and periodic hazing. The 3 and 5 pin DMX allows for easy 2 channel patching with any lighting board or program.

Two Year Warranty

The H4 has a 2-Year Warranty that means you can depend on your machine to perform when you need it. Our in house technicians can also quickly diagnose and repair any problem that may arise, sometimes over the phone!

Specifications

Physical
Length: 17 in.
Width: 16 in.
Height: 15 in.
Weight Empty: 24lbs Full: 27.3 lbs.

Performance
Fluid consumption (100%): 5.9 ml/min
Maximum operating time, maximum output: 833 min
Ready time: 1 Min.

Control and Programming
Control options: DMX, LED Menu, Manual Knobs
Fog Variable output control, 0-100%
DMX channels: 2
External fluid control: Fluid sensing

Construction
Housing: Metal
Color: Black
Fluid pump: Dual oscillating piston, high pressure
Fluid reservoir: 5L drop-in reservoir

Installation
Mounting: Standing or hanging
Orientation: Up to 45 Deg. From Horizontal.

Connections
AC Power: Seetronic Powerkon IP65
DMX, link mode in/out: 3 and 5-pin locking XLR

Electrical
US Model: AC power: 120 V, 60 Hz
Main fuse: 15A, 250 V
Typical power and current: 1200 W

*Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:

Included Items
Fluid reservoir, 5L Tank
Power input cable: Seetroic Powerkon IP65









$849.99
